DIY Gas Powder Coating Oven Construction and Operation Guide

Market Overview and Pricing

The DIY Gas Powder Coating Oven market serves metal fabricators and automotive shops needing cost-effective high-temperature curing. Prices range from $2,500 for small units to $15,000 for industrial-scale models. Natural gas models show 40% lower operating costs than electric alternatives.

Powder Coating Applications

DIY Gas Powder Coating Oven systems handle:

• Automotive parts including frames and wheels

• Agricultural equipment components

• Industrial machinery parts

• Metal furniture production

Gas Oven Fundamentals

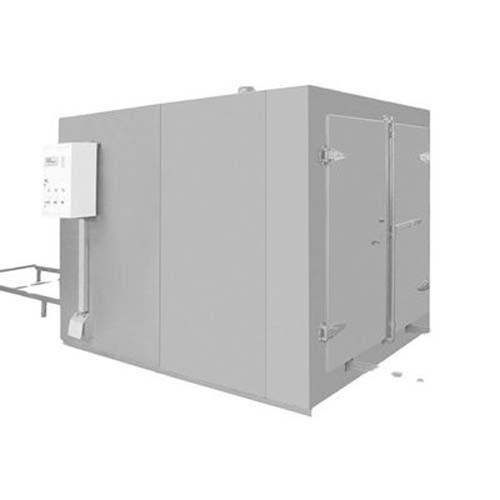

A DIY Gas Powder Coating Oven features:

• Direct-fired or indirect gas heating systems

• Temperature ranges of 350-450°F (177-232°C)

• Forced air circulation for even heat distribution

• Insulated chambers retaining heat efficiently

Three Key Components

1. Burner System: 50,000-300,000 BTU output with flame supervision

2. Heat Exchanger: Stainless steel or ceramic designs

3. Control System: Programmable logic controllers with safety interlocks

Operational Benefits

• Faster Heat Recovery: 25-30% quicker than electric models

• Lower Operating Costs: 40-50% savings on energy

• Higher Capacity: Handles larger parts more efficiently

• Continuous Operation: Suitable for production lines

Technical Q&A

How to Size a DIY Gas Powder Coating Oven?

Calculate internal volume based on largest part dimensions plus 18 inches clearance. For production needs, allow 1.5 cubic feet per part in batch processing. Standard sizes range from 4'x4'x6' to 8'x8'x20'.

How to Control Combustion in DIY Gas Powder Coating Oven?

Install oxygen trim systems for optimal air/fuel ratio. Use modulating gas valves for precise temperature control. Maintain 10-15% excess air for complete combustion. Monitor flue gas temperatures below 500°F.

How to Improve Thermal Efficiency?

Install heat recovery systems on exhaust stacks. Use ceramic fiber insulation (6-8 inch thickness). Implement automatic damper controls. Schedule curing during moderate ambient temperatures.

How to Ensure Gas Oven Safety?

Install flame failure devices on all burners. Use combustible gas detectors near equipment. Include high-temperature limit switches. Implement emergency ventilation systems.

How to Maintain DIY Gas Powder Coating Oven?

Clean burner nozzles monthly to prevent clogging. Inspect heat exchangers quarterly for cracks. Test safety controls every 6 months. Replace door gaskets when compression exceeds 1/4 inch.
