DIY Industrial Powder Coating Oven Building and Operation Manual

Date:2025-07-03 Type:Industrial Powder Coating Oven View:2

Market Demand and Pricing

The DIY Industrial Powder Coating Oven market serves small manufacturers and professional workshops requiring high-volume curing capabilities. Prices range from $3,000 for basic models to $25,000 for large-capacity units. Automotive and aerospace applications drive 65% of market growth.

DIY Industrial Powder Coating Oven,Industrial Powder Coating Oven

Powder Coating Project Applications

DIY Industrial Powder Coating Oven systems handle:

  • Batch processing of automotive components

  • Industrial machinery parts finishing

  • Architectural metalwork curing

  • Agricultural equipment coating

Industrial Oven Definition

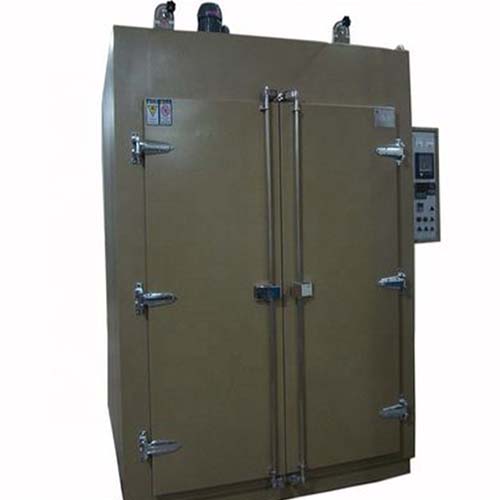

DIY Industrial Powder Coating Oven is a high-temperature enclosure that:

  • Cures powder coatings at 300-450°F

  • Provides uniform heat distribution

  • Maintains precise temperature control

  • Handles large or multiple parts

Three Critical Components

  1. Heating System: Electric elements or gas burners (50,000-200,000 BTU)

  2. Insulation: Mineral wool or ceramic fiber (4-6 inch thickness)

  3. Control Panel: Digital PID controllers with ±5°F accuracy

Performance Advantages

  • Production Capacity: 3-5 times faster than small ovens

  • Energy Efficiency: 30-40% less energy per part

  • Durability: 10-15 year lifespan with proper maintenance

  • Consistency: ±2% temperature variation across chamber

Technical Q&A Section

How to Size a DIY Industrial Powder Coating Oven?
Calculate internal dimensions based on largest part plus 12 inches clearance. For batch processing, multiply single part volume by maximum load capacity. Typical industrial ovens range from 4'x4'x6' to 8'x8'x20'.

How to Control Temperature in DIY Industrial Powder Coating Oven?
Use multiple heating zones with independent controls. Install thermocouples at different levels. Program ramp/soak profiles for different materials. Maintain 10-15 air changes per hour for even heat distribution.

How to Improve Energy Efficiency?
Install heat recovery systems on exhaust vents. Use double-wall construction with 6" insulation. Implement automatic door closers. Schedule curing during off-peak energy hours when possible.

How to Ensure Industrial Oven Safety?
Install high-limit temperature cutoffs 50°F above operating range. Use explosion-proof components in powder areas. Implement CO monitoring for gas models. Include emergency cooling systems for overheating protection.

How to Maintain DIY Industrial Powder Coating Oven?
Clean interior surfaces monthly to prevent contamination. Inspect heating elements quarterly for hot spots. Calibrate temperature sensors every 6 months. Replace door seals when gaps exceed 1/8 inch.
