DIY Powder Coating Booth Build Guide for Home Workshops

A DIY Powder Coating Booth is an affordable solution for hobbyists and small businesses looking to apply professional-quality powder coatings at home. These homemade systems provide controlled environments for powder application while minimizing overspray and maximizing efficiency. Unlike commercial booths, DIY versions can be built using readily available materials like plywood, metal sheets, and standard ventilation fans. They offer cost-effective alternatives for coating small metal parts, tools, and automotive components with durable finishes.

‌DIY Powder Coating Booth Structure and Components‌

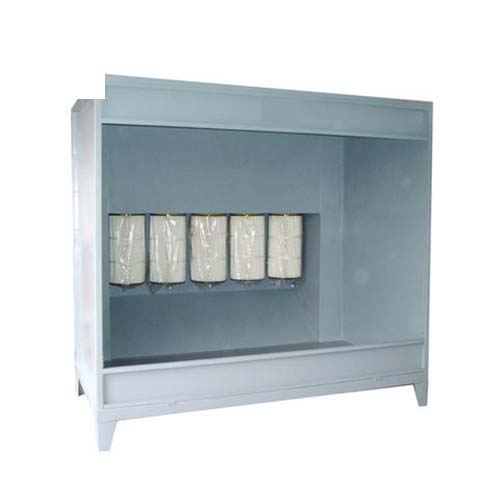

A basic DIY Powder Coating Booth consists of a wooden or metal frame, clear viewing panels, ventilation system, and grounding setup. The enclosure typically measures 4'x4'x6' to accommodate most small projects. Essential components include:

• Exhaust fan (200-400 CFM)

• Air filtration (furnace filters or specialized powder filters)

• Lighting (explosion-proof recommended)

• Grounding wire for static control

• Powder collection system (optional)

‌Applications of DIY Powder Coating Booth‌
Home-built DIY Powder Coating Booths are perfect for:

• Automotive parts restoration (wheels, brackets, engine components)

• Bicycle frame refinishing

• Metal furniture coating

• Tool refurbishment

• Small manufacturing projects

‌Design Considerations for DIY Powder Coating Booth‌
Key design factors include:

• Proper airflow (minimum 100 FPM face velocity)

• Static electricity control (grounding all metal parts)

• Fire safety measures (non-flammable materials)

• Easy cleaning surfaces (smooth interior finishes)

• Adequate lighting (minimum 1000 lux)

‌How to Choose Materials for DIY Powder Coating Booth‌
Select materials based on:

• Budget (plywood vs metal construction)

• Available space (compact vs full-size designs)

• Project frequency (temporary vs permanent setups)

• Safety requirements (explosion-proof components for professional results)

‌DIY Powder Coating Booth Q&A‌

1. ‌What's the cost to build a DIY powder coating booth?‌ Expect $300-$1000 depending on materials and components.

2. ‌Can I use a regular fan for ventilation?‌ Only if properly grounded and spark-proof; better to use explosion-proof fans.

3. ‌How important is grounding in a DIY booth?‌ Critical - prevents static discharge that could ignite powder.

4. ‌What's the minimum size for a functional DIY booth?‌ 3'x3'x4' works for very small items, but 4'x4'x6' is more practical.

5. ‌Can I convert a spray paint booth for powder coating?‌ Yes, with added grounding and proper filtration modifications.
