Powder Coating Spray Booth Design: Efficient Coating Layouts
Powder Coating Spray Booth Design caters to diverse needs. Small shops opt for compact layouts, while factories need large, automated designs. Costs vary: basic custom designs start at (8,000, and industrial setups with advanced features reach )150,000+, based on size and automation.
Powder Coating Spray Booth Design: Coating Project Introductions
Powder Coating Spray Booth Design supports projects like coating large metal shelves, with layouts allowing easy part movement. They’re used for automotive part batches, with designs optimizing spray gun access. These booths also handle intricate metal art, with layouts ensuring even powder coverage on detailed surfaces.
Powder Coating Spray Booth Design: Surface Treatment Process Technology
Powder Coating Spray Booth Design integrates with surface prep by positioning cleaning stations near the booth. Layouts include paths for parts to move from degreasing to coating without contamination. Ventilation systems in the design remove fumes from pre-treatment chemicals, keeping the coating environment clean.
Powder Coating Spray Booth Design: What Is It?

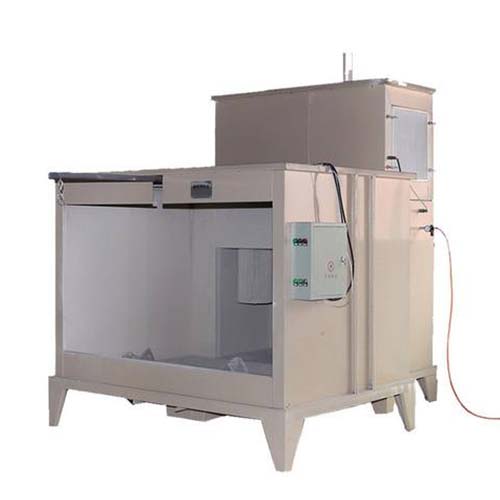

Powder Coating Spray Booth Design refers to the planning and layout of spray booths for optimal powder coating. It involves sizing, airflow patterns, equipment placement, and safety features. Good design ensures efficient coating, minimal waste, and compliance with safety standards, tailored to specific production needs.
Powder Coating Spray Booth Design: Components with 123 Introduction
Space Planning: Determines booth dimensions based on part size and production volume. Includes clearance for operators or robots, and paths for part entry/exit. Ensures enough room for ventilation and powder recovery systems.
Airflow Configuration: Designs air intake and exhaust paths to contain overspray. Uses pressure differentials to prevent powder escape. May include cross-flow, down-draft, or side-draft patterns based on coating needs.
Equipment Integration: Positions spray guns, conveyors, and curing ovens for smooth workflow. Ensures easy access for maintenance. Integrates controls for temperature, humidity, and powder flow to maintain consistent conditions.
Powder Coating Spray Booth Design: Advantages
Powder Coating Spray Booth Design reduces powder waste through efficient overspray capture. It improves workflow, cutting production time by streamlining part movement. Good design lowers energy use with optimized ventilation. It enhances safety by separating hazardous areas from work zones. Tailored layouts ensure consistent coating quality across all parts.
About Powder Coating Spray Booth Design Equipment: Q&A
How to Design a Powder Coating Spray Booth for Small Workshops?
Measure the largest parts to determine minimum booth size—add 2 feet on all sides for maneuvering. Choose a cross-flow airflow design for simplicity and cost-effectiveness. Position the booth near a wall for easy exhaust setup. Include a small powder recovery system to reuse overspray. Ensure doors are wide enough for part loading, with clear viewing windows.
How to Optimize Airflow in Powder Coating Spray Booth Design?
Calculate required airflow based on booth volume—aim for 100-150 cubic feet per minute per square foot of floor area. Position intake vents high and exhaust low to create a downward flow, containing powder. Use filters with uniform porosity to avoid air turbulence. Test airflow with smoke sticks to identify dead zones and adjust vent placement.
How to Ensure Safety in Powder Coating Spray Booth Design?
Locate the booth away from ignition sources like furnaces or electrical panels. Install explosion vents to release pressure in case of powder ignition. Include emergency stop buttons within reach of all operators. Design with non-sparking materials like aluminum to reduce static risks. Ensure ventilation meets OSHA standards for air quality.
How to Choose Materials for Powder Coating Spray Booth Design?
Use galvanized steel for booth frames to resist corrosion from cleaning chemicals. Select smooth, non-porous interior surfaces like stainless steel for easy cleaning. Choose fire-resistant materials for walls, rated to withstand high temperatures. Use sealed joints to prevent powder leakage and simplify maintenance.
How to Integrate Curing Ovens into Powder Coating Spray Booth Design?
Position the oven adjacent to the booth with a short conveyor between them to minimize powder settling. Ensure the oven’s exhaust doesn’t interfere with booth airflow. Design the transition area to maintain consistent part temperature, preventing powder clumping. Include controls that sync booth and oven operations, ensuring proper curing after coating.
