Powder Coating Spray Booth And Oven A Complete Guide for Buyers

Powder Coating Spray Booth And Oven A Complete Guide for Buyers

The global market for Powder Coating Spray Booth And Oven systems is experiencing significant growth, driven by increasing demand from automotive, aerospace, and industrial sectors for durable, eco-friendly finishing solutions. These integrated systems provide a controlled environment for applying and curing powder coatings, ensuring high-quality, corrosion-resistant finishes while minimizing waste and emissions. Prices vary based on size and features, ranging from 10,000forbasicsetupstoover200,000 for advanced automated systems with powder recovery and energy-efficient curing. Key industries leveraging this technology include automotive refinishing, metal fabrication, and appliance manufacturing, where durability, cost efficiency, and compliance with environmental regulations are critical. The emphasis on sustainability, with powder coatings producing zero VOC emissions and enabling up to 99% powder reuse, aligns with circular economy principles, reducing operational costs and environmental impact.

Powder Coating Spray Booth And Oven Project Introduction

Powder Coating Spray Booth And Oven systems are essential for projects requiring precise, high-quality surface finishes in controlled environments. These systems are widely used in automotive restoration, industrial machinery coating, architectural metalwork, and custom fabrication. The spray booth ensures even powder application through electrostatic charging, while the oven cures the coating into a durable layer. Projects benefit from faster turnaround times, reduced material waste, and compliance with safety standards such as OSHA and NFPA. Typical applications include coating vehicle frames, bicycle parts, furniture, and electronic enclosures, where consistency and durability are paramount. The flexibility of manual and automated designs caters to both small-scale workshops and high-volume production facilities.

Powder Coating Spray Booth And Oven Surface Treatment Technology

Surface treatment with Powder Coating Spray Booth And Oven systems relies on electrostatic attraction and advanced airflow management. The process begins with surface preparation, including cleaning, degreasing, and phosphating, to ensure proper adhesion. Inside the booth, electrostatic spray guns charge powder particles (30–100 kV), which are attracted to grounded workpieces, achieving uniform coverage with minimal overspray. Airflow systems maintain negative pressure, directing overspray toward filters or cyclonic recovery units for recycling. Curing follows in integrated ovens at 150–200°C, forming a durable, corrosion-resistant layer. Key technological features include adjustable airflow velocities (100–150 ft/min), HEPA filtration, and IoT-enabled monitoring for real-time adjustments to humidity and powder flow rates. This technology ensures 95%+ powder transfer efficiency, reducing waste and operational costs.

Powder Coating Spray Booth And Oven What Is It

A Powder Coating Spray Booth And Oven is an integrated system designed for applying and curing dry powder coatings on metal surfaces. It consists of a spray booth for powder application and an oven for heat curing. The booth features enclosed walls, ventilation systems, and powder recovery mechanisms, while the oven uses convection or infrared heating to melt and fuse the powder into a solid layer. Unlike liquid paint systems, it operates without solvents, emitting zero VOCs and aligning with environmental regulations. These systems are indispensable for industries seeking eco-friendly, high-performance finishing solutions that combine durability with cost savings, catering to applications ranging from automotive parts to household appliances.

Powder Coating Spray Booth And Oven Components and Their Functions

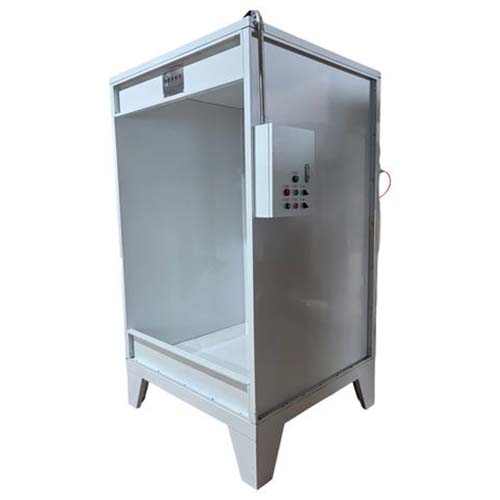

1. Spray Booth: The enclosed area where powder application occurs, constructed from anti-static materials like stainless steel. It includes ventilation fans, filters, and grounding systems to contain overspray and ensure operator safety. Key functions include maintaining airflow (80–150 ft/min) and enabling powder recovery through cyclonic separators or cartridge filters.

2. Curing Oven: Heats coated objects to 150–200°C for 10–20 minutes, melting and curing the powder into a durable finish. Ovens feature insulated walls, heating elements (electric or gas), and programmable controls for temperature accuracy. Advanced models include energy-efficient designs like infrared heating or low-cure options.

3. Control Unit: Regulates voltage, powder flow, airflow, and temperature settings. Digital interfaces in high-end systems allow precise adjustments and IoT integration for real-time monitoring and efficiency optimization.

Powder Coating Spray Booth And Oven Advantages

Powder Coating Spray Booth And Oven systems offer significant advantages, including environmental sustainability, cost efficiency, and operational flexibility. They produce zero VOC emissions, complying with regulations like the EU’s Industrial Emissions Directive and U.S. EPA standards. Powder recycling capabilities reduce material consumption by up to 99%, lowering long-term costs. Durability is enhanced through corrosion-resistant finishes that withstand UV exposure, chemicals, and abrasion. These systems also improve workplace safety via contained operations, explosion-proof lighting, and grounding mechanisms. Energy-efficient features, such as variable-speed fans and insulated ovens, cut electricity consumption by 20–30%. Additionally, modular designs allow scalability for growing operations, making them ideal for industries ranging from automotive to aerospace.

Powder Coating Spray Booth And Oven Q&A

How to Choose a Powder Coating Spray Booth And Oven for Specific Needs

Selecting the right system requires evaluating production volume, workpiece size, and material compatibility. For automotive or aerospace applications, opt for large booths (e.g., 10–20 ft) with high airflow (150 CFM/sq. ft) and explosion-proof features. Small workshops coating furniture or tools can prioritize compact systems (4–6 ft) with basic recovery. Ensure compliance with OSHA and NFPA standards, and consider modular designs for future expansion. Energy-efficient models with IoT monitoring suit high-volume facilities, while manual systems are cost-effective for custom projects. Always verify powder compatibility (e.g., epoxy, polyester) and supplier warranties for long-term reliability.

How to Achieve Even Coating with Powder Coating Spray Booth And Oven

Ensure proper grounding of the workpiece and maintain a consistent spray distance of 6–12 inches. Adjust powder flow rates to 10–30 g/min and use overlapping strokes to avoid streaks. For complex shapes, increase voltage settings to improve electrostatic attraction. Clean nozzles regularly to prevent clogs, and calibrate airflow pressure (8–20 psi) for optimal dispersion. Preheat the oven to the manufacturer’s specified temperature (typically 350–450°F) and monitor curing time to prevent defects like orange peel.

How to Maintain a Powder Coating Spray Booth And Oven for Longevity

Perform daily cleaning of the spray booth and oven interiors to prevent powder buildup. Inspect filters weekly and replace them every 3–6 months. Check electrical components monthly for wear, and calibrate temperature sensors quarterly. Lubricate moving parts, such as conveyor systems, and ensure grounding systems are functional. Store powder in dry, sealed containers to avoid moisture absorption, and train operators on emergency shutdown procedures.

How to Ensure Safety When Operating a Powder Coating Spray Booth And Oven

Operators must wear NIOSH-approved respirators, gloves, and anti-static clothing to prevent inhalation or skin contact with powder particles. Work in well-ventilated areas to dissipate dust and reduce explosion risks. Ground all equipment to prevent electrostatic discharge, and install fire suppression systems. Regularly inspect electrical systems and conduct training on emergency protocols for spills or fires. Maintain airflow velocities above 100 ft/min to keep airborne powder below OSHA’s 5mg/m³ limit.

How to Reduce Costs with a Powder Coating Spray Booth And Oven

Minimize waste by utilizing powder recovery systems to recycle overspray. Opt for energy-efficient ovens with low-cure powders to cut electricity consumption by 25–40%. Train operators in efficient spraying techniques to reduce rework and material usage. Purchase powders in bulk for discounts, and lease equipment if upfront costs are prohibitive. Regular maintenance prevents costly repairs and extends system lifespan to 10–15 years.
