Homemade Powder Coating Spray Booth A Complete Guide for DIY Enthusiasts

Homemade Powder Coating Spray Booth A Complete Guide for DIY Enthusiasts

The market for Homemade Powder Coating Spray Booths is expanding as hobbyists and small workshops seek affordable, eco-friendly solutions for high-quality metal finishing. These DIY systems enable users to apply durable powder coatings to automotive parts, furniture, tools, and custom metal crafts at a fraction of the cost of commercial setups. Prices for building a Homemade Powder Coating Spray Booth range from 100forbasicdesignsusingrepurposedmaterialsto1,200 for advanced systems with industrial-grade ventilation and powder recovery. Key drivers include sustainability (zero VOC emissions), cost savings (70–90% cheaper than commercial booths), and flexibility for low-volume projects. As DIY culture grows, Homemade Powder Coating Spray Booths empower users to achieve professional results while adhering to environmental regulations and reducing waste through powder recycling.

Homemade Powder Coating Spray Booth Project Introduction

Homemade Powder Coating Spray Booths are ideal for small-scale projects requiring controlled environments for powder application. These setups cater to automotive restoration (e.g., wheels, brackets), bicycle frame refinishing, furniture customization, and metal art projects. Unlike industrial systems, Homemade Powder Coating Spray Booths prioritize affordability and adaptability, allowing users to handle complex geometries and rapid color changes. Typical applications include coating garden tools, motorcycle parts, and home decor items, where durability and aesthetic appeal are critical. These booths use electrostatic principles to ensure even powder adhesion, followed by heat curing for a corrosion-resistant finish. Their portability and ease of assembly make them suitable for garages, workshops, and DIY spaces, enabling users to achieve professional-grade finishes without significant investment.

Homemade Powder Coating Spray Booth Surface Treatment Technology

Surface treatment in a Homemade Powder Coating Spray Booth relies on electrostatic charging and controlled airflow to achieve uniform coatings. Operators begin by cleaning and grounding the workpiece to remove oils, rust, or contaminants. Inside the booth, an electrostatic spray gun (30–100 kV) charges powder particles, which adhere to the grounded surface through electrostatic attraction. Ventilation systems maintain negative pressure, directing overspray toward filters (e.g., HEPA or cyclonic separators) for recycling. Key techniques include maintaining a spray distance of 6–12 inches, using overlapping strokes, and adjusting powder flow rates (10–30 g/min) for consistency. After application, the coated object is cured at 150–200°C in an oven, forming a durable layer resistant to abrasion, UV damage, and chemicals. This technology ensures high transfer efficiency (up to 95%), minimal waste, and compatibility with epoxy, polyester, and hybrid powders.

Homemade Powder Coating Spray Booth What Is It

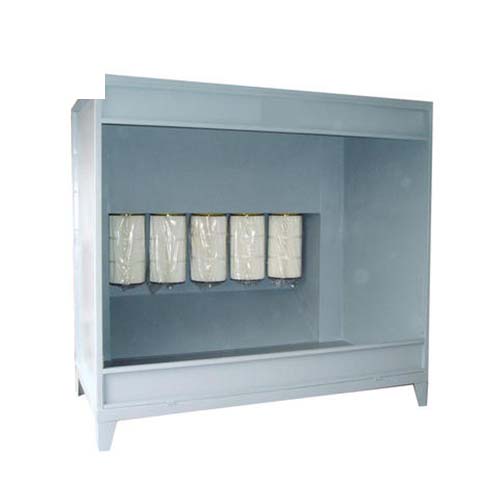

A Homemade Powder Coating Spray Booth is a self-built enclosure designed to contain overspray and provide a safe, controlled environment for applying powder coatings. It consists of a frame (wood, PVC, or metal), ventilation fans, filters, lighting, and grounding systems. Unlike commercial booths, Homemade Powder Coating Spray Booths are customizable, using affordable materials like plywood or repurposed cabinets to reduce costs. They operate on electrostatic principles, where charged powder particles adhere to grounded surfaces, and require heat curing for hardening. These booths are solvent-free, emitting zero VOCs, and are ideal for small businesses, hobbyists, and DIY enthusiasts seeking eco-friendly, cost-effective finishing solutions for metals and other conductive materials.

Homemade Powder Coating Spray Booth Components and Their Functions

1. Frame: Constructed from wood, PVC, or metal, the frame provides structural support and encloses the spraying area. It is designed to be lightweight and portable, often featuring modular panels for easy assembly and storage.

2. Ventilation System: Includes inline fans (200–500 CFM) and ducts that create negative airflow to capture overspray. This system ensures operator safety by preventing powder accumulation and maintaining air quality.

3. Filtration Unit: Uses pleated filters (MERV 8+) or HEPA filters to trap powder particles, allowing up to 70% recycling of overspray. Filters are removable for cleaning, reducing waste and operational costs.

Homemade Powder Coating Spray Booth Advantages

Homemade Powder Coating Spray Booths offer significant advantages, including cost efficiency (80% lower upfront costs than commercial units), environmental sustainability (zero VOC emissions and powder recycling), and customization for specific projects. Their portability allows operation in small spaces like garages, while operator control enables intricate designs and color flexibility. Safety features such as grounding systems and fire-resistant materials reduce risks, and maintenance is straightforward with easily replaceable components. Additionally, these booths consume less energy, especially when paired with energy-efficient curing ovens, making them ideal for low-volume production and DIY users seeking professional-quality finishes.

Homemade Powder Coating Spray Booth Q&A

How to Choose Materials for a Homemade Powder Coating Spray Booth

Select materials based on project size, budget, and safety requirements. For small booths (4x4 ft), use fire-retardant plywood or PVC frames (50–150). Prioritize ventilation fans with 200–500 CFM ratings and HEPA filters for efficient powder capture. Ensure all components are grounded using copper strips or anti-static coatings to prevent electrostatic discharge. For larger projects, metal frames with industrial fans (500–1,200) provide durability and higher airflow. Always verify material compatibility with your powder type (e.g., epoxy or polyester) and include explosion-proof lighting for safety.

How to Maintain a Homemade Powder Coating Spray Booth for Longevity

Clean filters weekly using compressed air or vacuuming to prevent clogs and maintain airflow. Inspect electrical connections monthly for wear, and replace damaged fans or wiring promptly. Lubricate moving parts, such as fan blades, every three months, and test grounding systems regularly to avoid static hazards. Store the booth in a dry environment to prevent rust or warping, and replace filters every 20–30 uses for optimal performance.

How to Ensure Safety in a Homemade Powder Coating Spray Booth

Operators must wear NIOSH-approved respirators, gloves, and anti-static clothing to prevent powder inhalation and skin contact. Work in well-ventilated areas, and install fire extinguishers (Class D) nearby for flammable powder risks. Ground all booth components and workpieces to eliminate static discharge, and avoid open flames or sparks. Maintain airflow velocities above 100 ft/min to keep powder concentrations below OSHA’s 5mg/m³ limit, and conduct routine safety checks on electrical systems.

How to Achieve Even Coating with a Homemade Powder Coating Spray Booth

Ensure thorough surface cleaning and grounding before application. Maintain a consistent spray distance of 6–12 inches, and use overlapping strokes for uniform coverage. Adjust powder flow rates to 10–30 g/min and voltage settings (30–100 kV) based on the workpiece’s complexity. For intricate shapes, increase voltage to enhance electrostatic attraction. Test settings on samples first, and clean spray gun nozzles regularly to prevent clogging and streaks.

How to Reduce Costs with a Homemade Powder Coating Spray Booth

Minimize waste by integrating powder recovery systems (e.g., cyclonic separators) to recycle up to 70% of overspray. Use energy-efficient LED lighting and variable-speed fans to cut electricity consumption by 20–30%. Source materials from repurposed items like old cabinets or box fans to reduce upfront costs by 50%. Lease equipment for short-term projects, and train operators in efficient spraying techniques to avoid rework and material waste.
