Powder Coating Spraying Machine User Reference
Powder Coating Spraying Machine products meet demands in metal finishing, automotive repair, and furniture manufacturing. Prices start at (3,000 for handheld units, )8,000 - (30,000 for stationary models, and )40,000+ for automated spray systems, varying by spray precision, coverage area, and automation level.
Powder Coating Spraying Machine Coating Project Introduction
Powder Coating Spraying Machine handles projects such as coating metal doors, automotive body panels, and outdoor furniture frames. These machines specialize in applying powder coatings with controlled precision, ensuring even coverage on flat surfaces and complex shapes alike, suitable for both functional protective layers and decorative finishes.
Powder Coating Spraying Machine Surface Treatment Process Technology
Powder Coating Spraying Machine integrates surface preparation focused on optimal spray adhesion. Surfaces undergo cleaning to remove contaminants, with optional sanding for textured finishes. The machine uses electrostatic spray technology to charge powder particles, which adhere to grounded surfaces, ensuring efficient coverage before curing—critical for maximizing spray efficiency and reducing overspray.
Powder Coating Spraying Machine What Is It

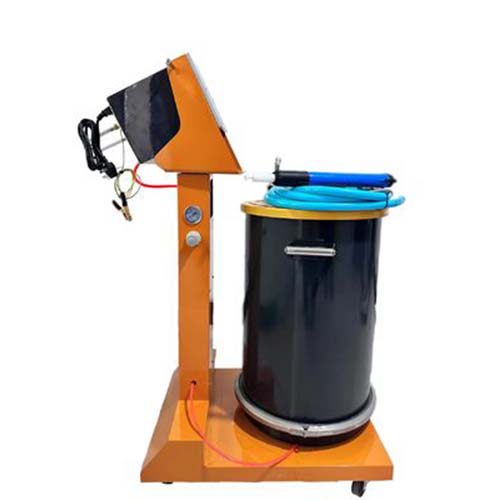

Powder Coating Spraying Machine is equipment designed specifically for applying powder coatings via spray application. It features spray guns (manual or automated) that deliver electrostatically charged powder, with systems to control flow rate, spray pattern, and particle charge. The machine balances spray intensity with precision, ensuring uniform coverage across various surface types and sizes.
Powder Coating Spraying Machine Components with 123 Introduction
Electrostatic Spray Gun: A key part of Powder Coating Spraying Machine, available in manual or robotic variants. It generates 40 - 100kV charge to ionize powder particles, with adjustable nozzles to control spray width (5 - 30cm) and flow rate (5 - 50g/min), ensuring adaptability to different part sizes.
Powder Feed System: Essential in Powder Coating Spraying Machine, consisting of a hopper, fluidizer, and delivery tube. It uses compressed air to fluidize powder, preventing clumping, and regulates flow to the gun, maintaining consistent particle distribution for uniform spray coverage.
Control Panel: Vital in Powder Coating Spraying Machine, with dials or digital interfaces to adjust voltage, airflow, and powder feed. It allows operators to save presets for different materials or part types, ensuring repeatable spray results and reducing setup time between jobs.
Powder Coating Spraying Machine Advantages
Powder Coating Spraying Machine offers precise control over coating thickness (20 - 200 microns), reducing material waste. Electrostatic spray technology ensures 90%+ powder transfer efficiency, lowering costs compared to conventional spraying. The machines handle a wide range of powders (metallic, textured, matte), supporting diverse finish requirements. Adjustable spray patterns minimize overspray, making them suitable for detailed work and large surfaces.
Powder Coating Spraying Machine How to Choose for Different Spray Coverage Needs
Choose Powder Coating Spraying Machine based on coverage requirements: for small parts (5 - 30cm), a handheld gun with narrow nozzles works. For large surfaces (1m+), select a machine with wide-spray nozzles (20 - 30cm) and higher flow rates. For complex shapes, opt for models with multiple guns or adjustable patterns to reach crevices—some advanced units offer 360° spray capability for cylindrical parts.
Powder Coating Spraying Machine How to Adjust Settings for Metallic vs Standard Powders
Adjust Powder Coating Spraying Machine for metallic powders by reducing voltage to 40 - 60kV to prevent particle clumping, and using a wider nozzle (15 - 20cm) to distribute flakes evenly. For standard powders, increase voltage to 60 - 100kV for better adhesion, with a narrower nozzle (5 - 15cm) for precision. Adjust fluidizer pressure—lower (1 - 2 bar) for metallics to protect flakes, higher (2 - 3 bar) for standard powders to ensure flow.
Powder Coating Spraying Machine How to Ensure Safety During Spray Operation
Ensure safety with Powder Coating Spraying Machine by grounding all components to prevent static discharge. Operators should wear conductive gloves and anti-static clothing to avoid charge buildup. Ventilate the spray area to remove powder dust, and use a respirator rated for particulate matter. Keep the gun’s trigger lock engaged when not in use, and never spray toward ungrounded objects or people.
Powder Coating Spraying Machine How to Maintain Spray Gun Performance
Maintain Powder Coating Spraying Machine by cleaning the spray gun after each use—disassemble the nozzle and tip, wiping away residual powder with a soft brush. Use compressed air to clear the powder feed tube and fluidizer. Calibrate voltage settings monthly with a charge meter, ensuring consistent particle ionization. Replace worn nozzles every 500 - 1,000 hours to prevent irregular spray patterns.
Powder Coating Spraying Machine How to Troubleshoot Common Spray Quality Issues
Troubleshoot issues in Powder Coating Spraying Machine: if spray is uneven, check for clogged nozzles or inconsistent powder flow—clean the feed system and adjust fluidizer pressure. For poor adhesion, verify surface grounding and increase voltage by 10kV. If powder clumps in the gun, reduce humidity in the hopper or replace old powder. For orange peel texture, decrease spray distance by 5cm and lower powder flow rate by 10%.
