Powder Coating Spray Machine Practical Handbook
Powder Coating Spray Machine products serve sectors like custom fabrication, agricultural equipment repair, and architectural metalwork. Prices range from (2,500 for basic portable sprayers to )25,000 for semi-automatic systems, and $60,000+ for industrial-grade machines, with costs tied to spray accuracy, material compatibility, and production speed.
Powder Coating Spray Machine Coating Project Introduction
Powder Coating Spray Machine handles projects such as coating tractor parts, metal railings, and custom steel art. These machines excel at applying coatings to both large, flat surfaces and intricate designs, providing durable finishes that withstand outdoor elements, mechanical stress, and chemical exposure in diverse working environments.
Powder Coating Spray Machine Surface Treatment Process Technology
Powder Coating Spray Machine integrates surface preparation steps tailored for effective spray adhesion. Surfaces are cleaned with pressure washers or chemical degreasers, followed by optional abrasive blasting to create a micro-rough texture. The machine then uses compressed air to propel charged powder particles onto the prepared surface, ensuring uniform coverage before curing at 160 - 220°C to form a hard, protective layer.
Powder Coating Spray Machine What Is It

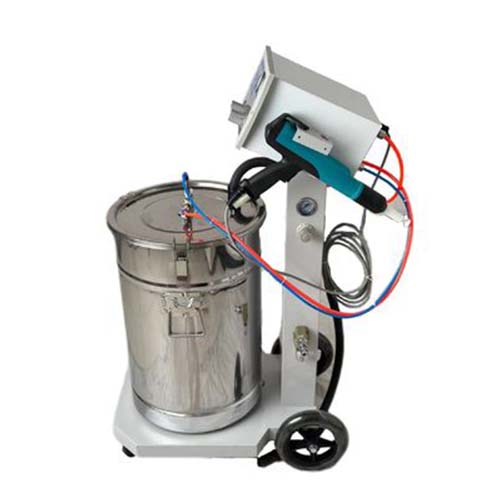

Powder Coating Spray Machine is a type of equipment designed to apply powder coatings using a spray mechanism. It combines a spray gun, powder reservoir, and power source to deliver electrostatically charged powder particles. The machine is engineered to control spray direction, density, and particle charge, enabling precise application on various metal and non-metal surfaces.
Powder Coating Spray Machine Components with 123 Introduction
Ergonomic Spray Gun: A key part of Powder Coating Spray Machine, designed for comfortable extended use. It features a lightweight grip, adjustable trigger sensitivity, and interchangeable tips (round, flat, fan) to adapt to different spray patterns, ensuring operators can reach tight spaces and cover large areas efficiently.
Powder Delivery System: Essential in Powder Coating Spray Machine, comprising a hopper, feed tube, and regulator. It uses low-pressure air to transport powder from the hopper to the gun, with a filter to prevent impurities from clogging the spray tip, maintaining consistent flow for even coating application.
Power and Control Unit: Vital in Powder Coating Spray Machine, housing the electrostatic generator and pressure controls. It allows operators to adjust charge intensity (30 - 90kV) and air pressure (2 - 6 bar), with LED indicators showing operational status, ensuring safe and precise adjustments during use.
Powder Coating Spray Machine Advantages
Powder Coating Spray Machine offers flexible operation, allowing operators to switch between projects quickly with minimal setup. Its portable designs enable on-site coating, reducing transportation costs for large items. The spray mechanism ensures minimal overspray, with recovery systems capturing up to 85% of unused powder for reuse. These machines also support a wide range of powder types, from standard to high-performance formulations.
Powder Coating Spray Machine How to Select Based on Project Scale
Select
Powder Coating Spray Machine by project size: for small batches (10 - 50 parts/week), a portable gun with a 5kg hopper suffices. For medium-scale production (50 - 200 parts/week), choose a semi-automatic system with an automatic powder feeder. For large operations (200+ parts/week), opt for a machine with multiple guns and a conveyor system to handle continuous spraying.
Powder Coating Spray Machine How to Adjust for Vertical vs Horizontal Surfaces
Adjust Powder Coating Spray Machine for vertical surfaces by reducing spray pressure to 2 - 3 bar to prevent powder sagging, and holding the gun at a 30° angle to the surface. Move the gun upward slowly, overlapping each pass by 50% to avoid gaps. For horizontal surfaces, increase pressure to 4 - 5 bar, hold the gun perpendicular, and move in steady, side-to-side motions, ensuring even coverage without pooling.
Powder Coating Spray Machine How to Ensure Safe Operation in Outdoor Settings
Ensure safety with Powder Coating Spray Machine outdoors by positioning the equipment away from open flames and ignition sources. Use a grounded extension cord rated for outdoor use to prevent electrical hazards. Wear a face shield and respiratory protection to guard against wind-blown powder. Secure the powder hopper to prevent tipping in windy conditions, and cover unused powder containers to avoid contamination.
Powder Coating Spray Machine How to Clean and Store for Longevity
Clean Powder Coating Spray Machine after use by disconnecting power, then disassembling the gun to wipe internal components with a dry cloth. Use compressed air to clear the feed tube and hopper of residual powder. Store the machine in a dry, dust-free area, with the gun hung vertically to prevent damage to the spray tip. Lubricate moving parts monthly with silicone spray to maintain smooth operation.
Powder Coating Spray Machine How to Resolve Common Spray Malfunctions
Resolve issues in Powder Coating Spray Machine: if spray sputters, check for a clogged filter in the delivery system—replace or clean it. For uneven coverage, verify the gun’s charge settings—increase voltage by 5kV for better particle adhesion. If powder fails to reach the surface, inspect the air pressure regulator—adjust to recommended levels (3 - 4 bar). For excessive overspray, reduce gun distance to 12 - 18cm from the surface and slow movement speed.
