Manual Powder Coating Lines are indispensable in modern industrial manufacturing, offering flexibility, cost-effectiveness, and high-quality finishes. These systems are ideal for small-to-medium-scale operations, providing eco-friendly advantages with minimal material waste and VOC emissions. Designed for diverse applications—from automotive parts to custom furniture—they cater to industries requiring meticulous control over coating thickness and adhesion. Prices range from 8,000forcompactsetupstoover100,000 for advanced multi-stage systems, depending on automation level and throughput capacity.

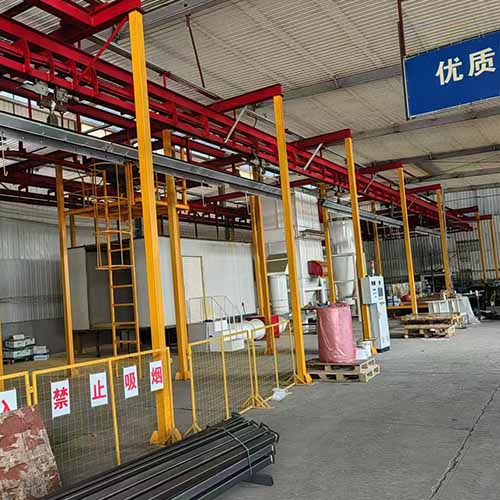

Manual Powder Coating Line System Introduction
Spray Booths: Equipped with electrostatic spray guns for uniform powder distribution, achieving ±3 μm thickness tolerance.
Curing Ovens: Gas or electric-heated chambers cure coatings at 180–220°C, ensuring durability and corrosion resistance.
Pre-Treatment Modules: Degreasing and phosphating stations optimize adhesion for metals like aluminum and steel.
Modular Design: Adjustable layouts for space-constrained facilities, supporting vertical or horizontal workflows.These systems comply with ISO 12944 and ASTM B117 standards, ideal for aluminum extrusions, automotive parts, and structural steel.
Manual Powder Coating Line Automation Technology
Digital Spray Guns: Adjustable voltage (60–100 kV) and powder flow rates ensure consistent coating quality.
IoT Sensors: Monitor real-time parameters (temperature, humidity) to optimize curing cycles and reduce energy use by 25%.
Closed-Loop Recovery: Cyclones reclaim 95–99% overspray, slashing material costs by 40%.
Quick-Change Filters: Enable rapid color transitions (under 10 minutes) with minimal downtime.
Manual Powder Coating Line Supplier Selection Techniques
Certifications: ISO 9001, CE, and OSHA compliance ensure safety and quality.
Customization: Modular designs for conveyor speed (0.5–5 m/min), oven capacity, and spray booth dimensions.
Energy Efficiency: Heat recovery systems and variable-speed drives reduce operational costs by 20%.
After-Sales Support: Warranty coverage (1–3 years) and 24/7 technical assistance minimize downtime.
Case Studies: Request data on powder utilization rates ≥95% and compliance with NFPA 33 standards.
Manual Powder Coating Line Industrial Applications Solutions
Automotive: Manual lines coat brake pads and engine components with UV-resistant epoxy powders, achieving 1,000+ hours salt spray resistance.
Furniture: Infrared ovens enable rapid curing on wooden surfaces at 180°C, maintaining gloss retention for 5+ years.
Appliances: Custom configurations for refrigerators and washing machines, using hybrid polyester-epoxy powders.
Renewable Energy: Anti-corrosive coatings for solar panel frames, optimized for harsh environmental conditions.
Manual Powder Coating Line Equipment Q&AHow to Optimize Coating Thickness in Manual Powder Coating LinesAchieve uniformity by maintaining 65–100 kV electrostatic charge and 0.9–1.6 bar airflow. Clean spray booth filters weekly and calibrate spray guns quarterly using laser alignment tools.How to Maintain Safety in Manual Powder Coating OperationsImplement explosion-proof ventilation to keep dust levels below 50% of the lower explosive limit. Ground all components to <1 ohm resistance and equip operators with respirators and flame-resistant suits.How to Troubleshoot Uneven Coating Adhesion
Adhesion Issues: Check pre-treatment quality (rust, oils) and ensure workpieces are fully grounded.
Oven Temperature Fluctuations: Clean heating elements and recalibrate thermocouples.
Powder Contamination: Replace clogged filters and inspect powder feed hoses.
How to Reduce Energy Consumption in Manual SystemsInstall heat recovery systems on gas ovens to reclaim 30–40% energy. Program variable-speed drives to idle during breaks and adopt LED lighting in non-critical zones.How to Handle Overspray Waste in Manual Coating LinesUse cyclone recovery systems to reclaim 95–99% overspray. Regularly clean recovery bins and recycle powder according to local regulations.
Manual Powder Coating Lines offer unmatched versatility and cost-effectiveness for diverse industrial applications. By integrating advanced automation, energy-efficient designs, and robust safety protocols, these systems deliver high-performance finishes while minimizing operational costs. Partner with certified suppliers to tailor solutions that align with your production goals and sustainability targets.
