Powder Coating Lines have revolutionized industrial surface finishing by combining efficiency, durability, and eco-friendliness. These systems utilize electrostatic spray technology to apply corrosion-resistant, wear-resistant coatings while minimizing material waste. Designed for scalability, they cater to industries ranging from automotive manufacturing to renewable energy, with prices varying from 50,000forcompactsystemstoover500,000 for fully integrated solutions. Their zero-VOC process aligns with global sustainability goals, making them a preferred choice for manufacturers prioritizing efficiency and environmental responsibility.

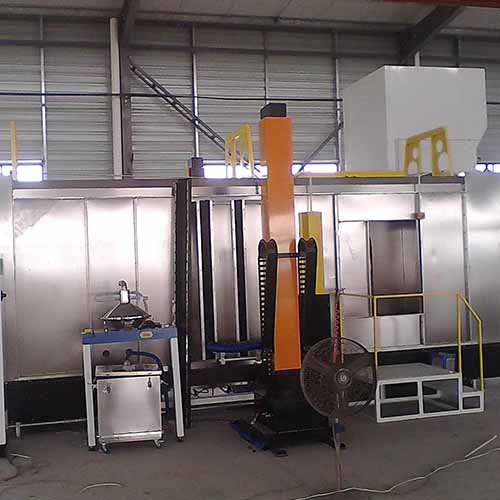

Powder Coating Line System Introduction
Pre-Treatment Modules: Degreasing and phosphating stations ensure optimal adhesion for metals like aluminum and stainless steel.
Electrostatic Spray Zones: Robotic arms or reciprocators apply powder uniformly, achieving ±2 μm thickness tolerance.
Curing Ovens: Gas or infrared-heated chambers cure coatings at 180–220°C, with 99.2% powder recovery rates via cyclone systems.
Modular Design: Adjustable layouts for space-constrained facilities, supporting vertical or horizontal workflows.These systems comply with ISO 12944 and ASTM B117 standards, ideal for automotive parts, structural steel, and solar panel frames.
Powder Coating Line Automation TechnologyAutomation enhances efficiency through:
Robotic Arms: Six-axis robots adjust spray angles dynamically for complex geometries, reducing human error by 45%.
IoT Integration: Real-time monitoring of temperature, voltage, and airflow optimizes curing cycles, cutting energy use by 30%.
Closed-Loop Recovery: Cyclones reclaim 97–99% overspray, slashing material costs by 45%.
Quick-Change Filters: Enable rapid color transitions (under 10 minutes) with minimal downtime.
Powder Coating Line Supplier Selection Criteria
Certifications: ISO 9001, CE, and OSHA compliance ensure safety and quality.
Customization: Modular designs for conveyor speed (0.5–12 m/min), oven capacity, and spray booth dimensions.
Energy Efficiency: Heat recovery systems and variable-speed drives reduce operational costs by 25%.
After-Sales Support: Warranty coverage (1–3 years) and 24/7 technical assistance minimize downtime.
Case Studies: Request data on powder utilization rates ≥95% and compliance with NFPA 33 standards.
Powder Coating Line Industrial Applications
Automotive: Robotic lines coat wheels and chassis with UV-resistant epoxy powders, achieving 1,500+ hours salt spray resistance.
Construction: Multi-stage pretreatment for steel beams ensures adhesion in humid environments.
Appliances: Infrared ovens enable rapid curing on refrigerator panels at 200°C, maintaining gloss retention for 8+ years.
Renewable Energy: Anti-corrosive coatings for solar panel frames using hybrid polyester-epoxy powders.Custom configurations include vertical conveyors for elongated parts and color-change booths for niche aesthetic demands.
Powder Coating Line Equipment Q&AHow to Optimize Coating Thickness in Powder Coating LinesAchieve uniformity by maintaining 65–100 kV electrostatic charge and 0.9–1.6 bar airflow. Clean spray booth filters weekly and calibrate spray guns quarterly using laser alignment tools.How to Maintain Safety in Powder Coating OperationsImplement explosion-proof ventilation to keep dust levels below 50% of the lower explosive limit. Ground all components to <1 ohm resistance and equip operators with respirators and flame-resistant suits.How to Troubleshoot Uneven Coating Adhesion
Adhesion Issues: Check pre-treatment quality (rust, oils) and ensure workpieces are fully grounded.
Oven Temperature Fluctuations: Clean heating elements and recalibrate thermocouples.
Powder Contamination: Replace clogged filters and inspect powder feed hoses.
How to Reduce Energy Consumption in Powder Coating LinesInstall heat recovery systems on gas ovens to reclaim 30–40% energy. Program variable-speed drives to idle during breaks and adopt LED lighting in non-critical zones.How to Handle Overspray Waste in Powder Coating LinesUse cyclone recovery systems to reclaim 95–99% overspray. Regularly clean recovery bins and recycle powder according to local regulations.
Powder Coating Lines offer unmatched versatility and cost-effectiveness for diverse industrial applications. By prioritizing certifications, customization, and advanced automation, these systems deliver high-performance finishes while meeting stringent environmental standards. Partner with certified providers to tailor solutions that align with your production goals and sustainability targets.
