DIY Electrostatic Powder Coating Booth Construction and Operation Guide

Market Demand and Price Overview

The DIY Electrostatic Powder Coating Booth market sees growing interest from automotive restorers, metal fabricators, and hobbyists seeking professional finishes. Entry-level setups cost $800-$2000 while advanced systems reach $5000. This cost-effective solution provides industrial-quality results at a fraction of commercial booth prices.

What Is a DIY Electrostatic Powder Coating Booth?

A DIY Electrostatic Powder Coating Booth is a customized workspace that utilizes electrostatic charge to efficiently apply powder coatings. The electrostatic process creates superior adhesion compared to conventional methods while containing overspray.

Key Components

1. Charging System: Generates 30-100kV to electrically charge powder particles

2. Spray Enclosure: Constructed with grounded metal panels or fireproof materials

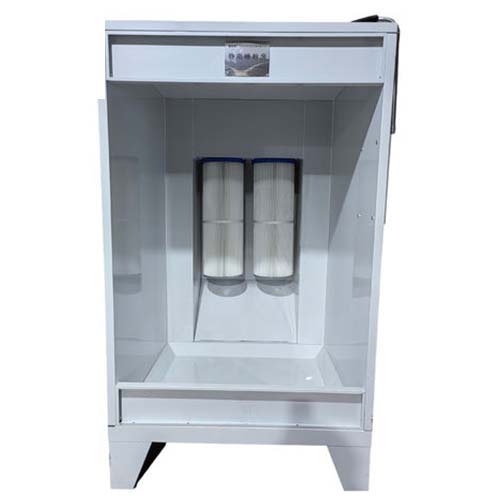

3. Recovery System: Cyclonic separators or cartridge filters reclaim unused powder

Technical Advantages

• Improved Transfer Efficiency: Electrostatic attraction achieves 60-80% powder utilization

• Uniform Coverage: Charged particles wrap around complex geometries

• Reduced Waste: Reclaim systems capture 90% of overspray

Detailed FAQs

How to Build an Effective DIY Electrostatic Powder Coating Booth?
Focus on proper grounding of all components - use copper grounding straps connected to earth ground. The enclosure should be 20% larger than your largest project. Include explosion-proof lighting rated for hazardous locations.

How to Maintain Electrostatic Spray Guns?
Clean electrodes weekly with isopropyl alcohol. Replace corona needles every 50 operating hours. Store guns in dry conditions to prevent moisture damage to high-voltage components.

How to Achieve Professional Electrostatic Coating Results?
Maintain 6-10 inches between gun and workpiece. Use 60-90 psi air pressure depending on powder type. Preheat substrates to 200°F for improved flow-out when coating thick sections.

How to Ensure Electrostatic Coating Safety?
Install Class D fire extinguishers rated for metal fires. Wear insulated gloves when adjusting high-voltage settings. Implement interlock systems that cut power when doors open.

How to Troubleshoot Electrostatic Coating Problems?
For poor adhesion, verify proper grounding resistance (<1 megohm). If experiencing back-ionization, reduce voltage or increase gun distance. Orange peel texture indicates incorrect cure temperature or insufficient powder charge.
