Electrostatic Powder Coating Booth sees high demand in automotive, aerospace, and metal fabrication industries. Prices vary from $3,000 for compact models to $25,000+ for industrial systems, based on size, automation level, and filtration efficiency. Its popularity grows due to durable, eco-friendly finishes.
Electrostatic Powder Coating Booth Coating Projects OverviewElectrostatic Powder Coating Booth handles diverse projects, from coating car rims and bike frames to industrial machinery parts. It suits both small-scale custom jobs and large-volume production runs. The electrostatic process ensures uniform coverage, making it ideal for items with complex geometries, such as metal furniture with intricate designs or architectural metal components.
Electrostatic Powder Coating Booth Surface Treatment Process TechnologyElectrostatic Powder Coating Booth relies on a multi-step surface treatment. First, parts undergo cleaning to remove contaminants—using solvents, alkaline cleaners, or abrasive blasting. Then, they are dried to prevent moisture interference. Inside the booth, a spray gun charges powder particles, which are attracted to the grounded part. After application, parts enter a curing oven where heat melts the powder into a smooth, durable film, bonding tightly to the surface.

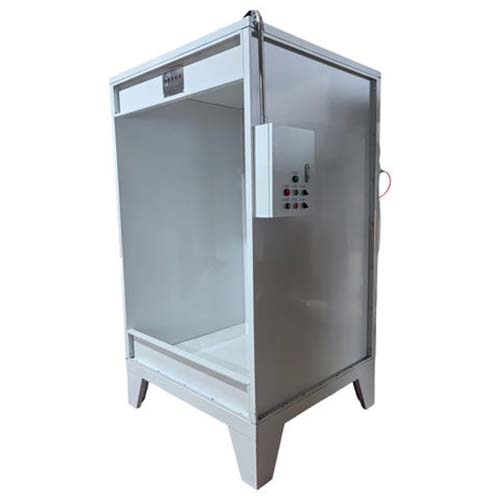

Electrostatic Powder Coating Booth What It IsElectrostatic Powder Coating Booth is an enclosed system using electrostatic charges to apply dry powder coatings. The booth contains overspray, features filtration to capture excess powder, and maintains controlled airflow. Its core is the electrostatic spray gun, which charges powder, ensuring it adheres to the part. Unlike liquid painting, it produces no volatile organic compounds, making it environmentally friendly.
Electrostatic Powder Coating Booth Key Components
Spray Chamber – The enclosed space where coating occurs. It has walls designed to contain powder, with smooth surfaces for easy cleaning. Sizes range from small benchtop units to large walk-in chambers.
Electrostatic Spray Gun – Delivers charged powder to the part. It uses either corona charging (high-voltage electrode) or tribo charging (friction-based) to charge particles, ensuring strong adhesion.
Powder Recovery System – Captures unused powder for reuse. Includes filters, cyclones, or cartridges to separate powder from air, reducing waste and lowering material costs.
Electrostatic Powder Coating Booth Advantages
Electrostatic Powder Coating Booth offers superior finish quality with even coverage, reducing drips and runs common in liquid paints. It produces durable coatings resistant to chipping, scratching, and corrosion. The process is eco-friendly, with no harmful fumes or liquid waste. Powder recovery systems minimize material loss, cutting costs. It also allows for a wide range of colors and textures, from matte to high-gloss, meeting diverse aesthetic needs.
How to Operate an Electrostatic Powder Coating Booth EfficientlyOperating an
Electrostatic Powder Coating Booth efficiently starts with proper part preparation—ensure surfaces are clean and dry. Set the spray gun to the correct voltage (typically 50-100 kV) based on powder type and part material. Maintain a consistent distance (6-10 inches) between the gun and part to ensure even coating. Move the gun in smooth, overlapping strokes. After application, cure parts at the recommended temperature (usually 350-400°F) for the specified time to achieve full hardness. Regularly clean the booth and recovery system to prevent powder buildup, which can affect performance.
How to Select an Electrostatic Powder Coating Booth for Small Business UseSelecting an
Electrostatic Powder Coating Booth for small business involves assessing space—choose a size that fits your workshop while leaving room for part handling. Consider production volume: batch booths work for low volumes, while inline systems suit higher output. Check filtration efficiency; HEPA filters reduce powder waste and improve air quality. Look for adjustable voltage settings to handle various powders. Evaluate power requirements to ensure compatibility with your electrical system. Compare prices and warranties, prioritizing durable models from reputable brands to avoid frequent repairs.
How to Ensure Safety When Using an Electrostatic Powder Coating Booth
Ensuring safety with an Electrostatic Powder Coating Booth starts with grounding the booth, parts, and operator to prevent static discharge. Use explosion-proof lighting and equipment, as powder is combustible. Wear appropriate PPE: a respirator approved for powder inhalation, gloves, and safety glasses. Keep the booth area free of ignition sources like open flames or sparks. Regularly inspect electrical components for damage. Ensure proper ventilation to remove any fumes from curing. Train operators on emergency procedures, including how to shut down the system quickly if needed.
How to Troubleshoot Coating Defects in an Electrostatic Powder Coating BoothTroubleshooting coating defects in an
Electrostatic Powder Coating Booth: for orange peel texture, check curing temperature—too high or too low can cause this. Adjust the oven settings. For pinholes, ensure parts are fully dry before coating; moisture can vaporize during curing. If powder doesn’t adhere, check gun voltage—low voltage reduces attraction. Clean the gun nozzle to remove clogs. For uneven coverage, adjust gun movement speed or distance from the part. Inspect the recovery system; clogged filters can disrupt airflow, affecting coating consistency.
How to Calculate the Lifespan of an Electrostatic Powder Coating BoothCalculating the lifespan of an
Electrostatic Powder Coating Booth depends on usage hours—daily operation affects wear. High-quality booths with proper maintenance last 10-15 years. Check component durability: steel chambers resist corrosion better than aluminum. Filtration systems need filter replacements every 3-6 months, but the frame and structure should last longer. Motor life in fans and conveyors (if included) averages 8-10 years with regular lubrication. Environmental factors matter too; humid conditions can shorten electrical component life. Regular cleaning and preventive maintenance extend lifespan significantly.
