DIY Automatic Powder Coating Line The Complete Setup Guide for Small-Scale Production

The DIY Automatic Powder Coating Line market has grown significantly as small manufacturers seek affordable alternatives to industrial systems. These semi-automated setups typically cost between $5,000-$20,000 depending on size and features, offering substantial savings over commercial alternatives. A well-designed DIY Automatic Powder Coating Line can process 50-200 parts per day with consistent quality.

DIY Automatic Powder Coating Line Introduction to Coating Projects

A DIY Automatic Powder Coating Line enables efficient finishing of metal products with minimal manual intervention. Common applications include automotive components, architectural fittings, and industrial equipment. The system typically handles parts up to 2m in length with proper conveyor customization. Project throughput depends on line speed and curing capacity.

DIY Automatic Powder Coating Line Surface Treatment Technology

The process begins with automated pre-treatment (cleaning/phosphate coating) followed by electrostatic powder application. The DIY Automatic Powder Coating Line precisely controls powder deposition thickness (50-100 microns) before infrared or convection curing. Advanced systems incorporate color-change technology for multi-color production runs.

DIY Automatic Powder Coating Line What Is It

A DIY Automatic Powder Coating Line is a modular system that automates the powder application and curing process. Unlike manual setups, it features conveyorized part handling, automated spray guns, and integrated curing. The system typically occupies 10-30 square meters and operates on 220V/380V power.

DIY Automatic Powder Coating Line Key Components

1. Conveyor System: Motorized chain or belt transport for consistent part movement

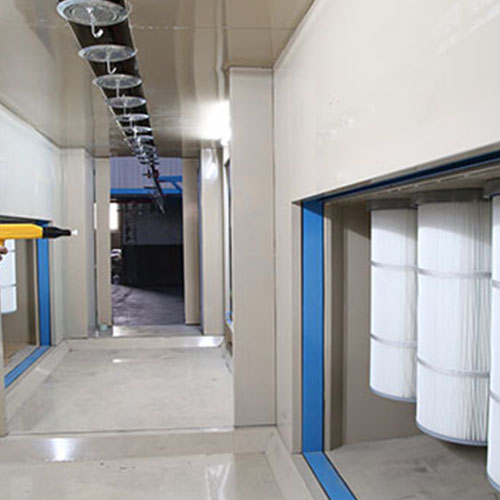

2. Spray Booth: Enclosed area with electrostatic guns and powder recovery

3. Curing Oven: Temperature-controlled chamber with proper ventilation

DIY Automatic Powder Coating Line Advantages

• Increased Output: Processes 3-5x more parts than manual methods

• Consistent Quality: Automated controls ensure uniform coating thickness

• Material Savings: 95% powder utilization with proper recovery systems

• Labor Efficiency: Requires only 1-2 operators for continuous production

DIY Automatic Powder Coating Line Q&A

How to Size a DIY Automatic Powder Coating Line?

Measure your largest part dimensions and desired production rate. Allow 20% extra length for future expansion. Typical DIY systems handle parts up to 2m long x 1m wide.

How to Maintain Powder Consistency in a DIY Automatic Powder Coating Line?

Use fluidized powder hoppers and regularly clean reclaim systems. Monitor gun voltage (50-100kV) and adjust powder pump settings as needed.

How to Optimize Energy Use in a DIY Automatic Powder Coating Line?

Install thermal insulation on ovens and use variable frequency drives on conveyor motors. Preheat zones can reduce curing energy by 15-20%.

How to Troubleshoot Common DIY Automatic Powder Coating Line Issues?

Address uneven coating by checking gun alignment and airflow patterns. For curing problems, verify oven temperature uniformity with thermal sensors.

How to Ensure Operator Safety with a DIY Automatic Powder Coating Line?

Implement emergency stops, proper grounding, and explosion-proof electrical components. NFPA 33 compliance is recommended for all automated systems.
