Vertical Powder Coating Line meets growing needs in industries handling tall or vertical metal components. It coats items like door frames, ladder rails, and vertical structural parts used in construction, automotive, and furniture sectors. Prices range from $25,000 for small manual lines to over $400,000 for large automated systems, varying by height capacity and processing speed.
Vertical Powder Coating Line handles projects focused on vertical or tall metal components that require uniform coating on all surfaces. These projects include coating door frames, vertical support beams, and tall industrial panels. The line ensures consistent coverage even on vertical surfaces, which is critical for both protective and decorative finishes in commercial buildings, residential complexes, and industrial facilities.
Vertical Powder Coating Line uses specialized surface treatment processes to prepare vertical metal components. This includes vertical immersion in degreasing tanks to remove oils, high-pressure rinsing to eliminate residues, and chemical conversion coating to enhance powder adhesion. The vertical orientation requires adjusted chemical flow rates (10-15 liters per minute) to ensure all surfaces contact treatment solutions evenly, preventing uneven coating later in the process.
Vertical Powder Coating Line is a specialized system designed to apply powder coatings to vertical or tall metal components through electrostatic deposition and heat curing. Unlike horizontal lines, it handles components in a vertical position, using gravity and controlled spray techniques to ensure coating reaches all sides. Its purpose is to provide efficient, uniform coating for parts where horizontal handling would be impractical or cause uneven coverage.
Vertical Conveyor System: Moves components vertically through the line using adjustable clamps or hooks. It maintains steady speed (0.5-3 meters per minute) to ensure each part spends equal time in treatment and coating stages, critical for uniform results.
Vertical Pretreatment Module: A series of vertically aligned tanks for degreasing, rinsing, and conversion coating. These tanks use pumps to circulate solutions upward, ensuring full contact with vertical surfaces and thorough cleaning.

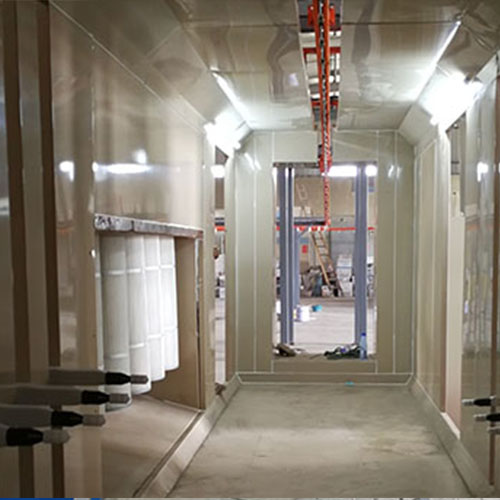

Powder Spray Chamber: Equipped with vertically mounted electrostatic guns that spray powder from multiple angles (top, sides, bottom). The chamber uses suction systems to recover excess powder, with filters designed to handle vertical airflow and reduce waste.
Vertical Curing Oven: Heats coated components while they hang vertically, maintaining temperatures between 160-200°C. Ovens use vertical airflow to distribute heat evenly, ensuring the powder melts and fuses uniformly on all vertical surfaces.
Vertical Powder Coating Line offers superior coverage on vertical surfaces, eliminating drips or sagging that can occur with horizontal coating. It saves floor space compared to horizontal lines, making it ideal for facilities with limited area. The vertical orientation reduces component handling, lowering the risk of damage during processing. It supports continuous production of tall parts, increasing throughput for items like door frames or vertical rails. The system also recovers excess powder efficiently, cutting material costs over time.
How to select the right Vertical Powder Coating Line for different component heightsTo select the right
Vertical Powder Coating Line, first measure the maximum height of your components (common ranges: 2-6 meters). Choose a line with a conveyor system and oven height that exceeds these measurements by at least 30 cm to avoid contact. Check the vertical pretreatment module’s tank depth—deeper tanks suit taller components. For components up to 3 meters, a semi-automatic line may suffice; for 4+ meters, opt for a fully automatic system with adjustable vertical speed. Ensure the powder spray chamber has guns positioned to cover the full height, with additional side guns for wide vertical parts.
How to operate Vertical Powder Coating Line for consistent coating thicknessOperate
Vertical Powder Coating Line by first calibrating the vertical conveyor speed to match your powder type—slower speeds (0.5-1 m/min) work for thicker coatings (80-120 microns), faster speeds (2-3 m/min) for thinner ones (40-70 microns). Adjust electrostatic gun voltage (60-80 kV) and powder flow rate (40-80 grams per minute), testing on sample parts to check thickness with a gauge. Ensure the vertical pretreatment module maintains consistent solution concentrations—daily checks of pH levels (6.5-7.5 for rinsing) prevent surface irregularities that affect thickness. Monitor the curing oven’s vertical temperature gradient; variations over ±5°C can cause uneven curing, so use internal sensors to adjust heat distribution.
How to maintain Vertical Powder Coating Line to extend its service lifeMaintain
Vertical Powder Coating Line by cleaning vertical spray guns daily to remove dried powder that clogs nozzles, using compressed air to clear openings. Lubricate the vertical conveyor chain every 40 hours of operation, focusing on clamp hinges to prevent sticking. Inspect the vertical pretreatment pumps weekly for leaks, replacing worn seals to avoid solution loss. Clean the curing oven’s vertical air filters monthly to maintain airflow and temperature control. Check the powder recovery system’s suction power quarterly—weak suction indicates clogged filters, which reduce efficiency and should be replaced. Keeping a log of maintenance tasks helps track wear patterns and schedule part replacements before failures occur.
How to troubleshoot uneven coating on vertical edges in Vertical Powder Coating LineTroubleshoot uneven coating on vertical edges in
Vertical Powder Coating Line by first checking gun positioning. Edges often receive less powder if guns are angled too far from the part—adjust side guns to aim directly at edges, reducing distance to 10-15 cm. If edges still show thin coating, increase powder flow rate to edge-specific guns by 10-15% while keeping voltage consistent. Check the vertical conveyor’s stability; slight 晃动 can cause parts to move away from guns—tighten clamps or replace worn hooks to secure components. Inspect the powder’s particle size; overly coarse powder (over 90 microns) may not reach edges—switch to a finer grade (50-80 microns) for better edge coverage.
How to ensure safety when operating Vertical Powder Coating LineEnsure safety with
Vertical Powder Coating Line by training operators to use heat-resistant gloves and face shields when handling components near the curing oven. Install emergency stop buttons at multiple points along the vertical line, clearly marked and within easy reach. Ventilate the powder spray chamber with exhaust fans that maintain negative pressure, preventing powder dust from escaping into the workspace. Check electrical connections in the vertical conveyor and oven weekly for fraying or damage, repairing immediately to avoid shocks. Store powder in sealed containers away from ignition sources, and post fire extinguishers near the curing oven. During maintenance, use lockout-tagout procedures to disable power, preventing accidental startup while working on moving parts.
