How To Select and Maintain an Automated Powder Coating Line
The Automated Powder Coating Line caters to diverse manufacturing needs, with applications in automotive, aerospace, and appliance industries. Prices typically range from (35,000 for compact systems to )500,000+ for fully integrated, high - capacity lines. Key price determinants include automation level, conveyor speed, and curing technology.
Automated Powder Coating Lines: Coating Projects Introduction
Automated Powder Coating Lines excel in various industrial coating projects. In automotive manufacturing, they coat chassis components, wheel rims, and engine parts to enhance corrosion resistance. Aerospace firms use these lines for coating aircraft brackets and landing gear components, ensuring durability in extreme conditions. Appliance manufacturers rely on them to coat refrigerator panels and oven racks, delivering both aesthetic appeal and scratch resistance.
Automated Powder Coating Lines: Surface Treatment Technology
The surface treatment technology in
Automated Powder Coating Lines involves a systematic process. First, metal parts undergo pre - treatment, including degreasing with alkaline solutions and abrasive blasting to create a rough surface for better powder adhesion. Next, in the electrostatic spraying phase, powder particles are charged as they exit the spray guns, adhering to the grounded parts. Finally, the coated parts enter a curing oven where heat fuses the powder into a uniform, durable finish at temperatures between 180°C and 220°C.
Automated Powder Coating Lines: What Is It?
An
Automated Powder Coating Line is an integrated, automated system designed for mass - producing powder - coated metal components. It combines pre - treatment stations, an electrostatic spraying booth, a curing oven, and a conveyor system. Controlled by programmable logic controllers (PLCs), the line regulates parameters like spray gun movement, powder flow, and oven temperature to ensure consistent, high - quality finishes with minimal manual intervention.
Automated Powder Coating Lines: Components Introduction
Conveyor System: This key component transports parts through the line. Overhead monorail conveyors are ideal for space - saving setups, handling parts up to 50 kg with adjustable speeds (0.5 - 5 m/min). Floor - mounted belt conveyors suit heavier parts (50 - 500 kg), offering stability and flexibility in layout.
Robotic Spray System: Automated robotic arms with electrostatic spray guns apply powder in programmed patterns. High - efficiency guns (90%+ powder transfer) feature adjustable voltage (40 - 100 kV) and fluidization settings, ensuring uniform coating on complex shapes.

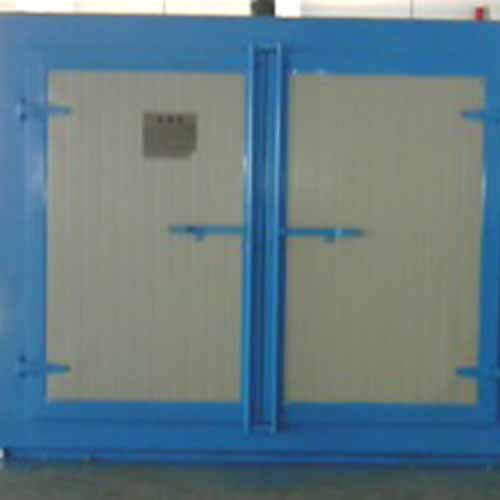

Electric Curing Oven: Insulated ovens with forced - air circulation maintain temperature uniformity within ±5°C. Multi - zone heating allows precise curing profiles, with typical dwell times of 10 - 20 minutes. Exhaust systems safely remove any volatile compounds.
Automated Powder Coating Lines: Advantages
Automated Powder Coating Lines offer significant operational benefits. They boost production efficiency, with some lines processing over 500 parts per hour—up to 10 times faster than manual systems. The automated process reduces human error, leading to defect rates of less than 1%, compared to 8 - 12% in manual setups. Additionally, powder recycling systems reclaim 85 - 95% of overspray, cutting material costs by up to 40%.
FAQs About Automated Powder Coating Lines
How To Optimize Powder Usage in Automated Powder Coating Lines?
To optimize powder usage in Automated Powder Coating Lines, start by calibrating the fluidization bed pressure (0.5 - 1.5 bar) to prevent excessive powder agitation. Adjust the electrostatic voltage based on part geometry: use 40 - 60 kV for sharp edges to avoid corona discharge and 80 - 100 kV for flat surfaces. Install a powder reclaim system with 1 - 5 micron cartridge filters to recover up to 95% of overspray. Regularly clean the powder hopper to prevent moisture - induced clumping and inconsistent flow.
How To Troubleshoot Coating Thickness Variations in Automated Powder Coating Lines?
Inconsistent coating thickness in Automated Powder Coating Lines often results from uneven powder deposition. First, check that the conveyor speed is consistent (variations >0.1 m/min affect thickness). Inspect spray gun nozzles for clogs, clearing them with filtered compressed air (0.01 micron). Calibrate the powder flow meter to manufacturer specs (e.g., 100 - 300 g/min for standard guns). For complex parts, adjust the reciprocator speed and gun angle—30 - 45° angles improve coverage on recessed areas.
How To Perform Daily Maintenance on Automated Powder Coating Lines?
Daily maintenance for Automated Powder Coating Lines includes inspecting conveyor chain tension, ensuring 1 - 2 cm deflection under moderate pressure. Clean the spray booth walls and floor with a conductive vacuum to remove powder buildup, which can cause static - related coating defects. Verify curing oven temperature probe accuracy with a handheld pyrometer (deviations >2°C require calibration). Lubricate reciprocator joints with food - grade grease and check safety interlocks (e.g., door switches) for proper function.
How To Select the Right Conveyor Type for Automated Powder Coating Lines?
Choosing the right conveyor for Automated Powder Coating Lines depends on part weight and layout. Overhead monorail conveyors suit parts under 50 kg, offering space - saving vertical transport. For heavier components (50 - 500 kg), opt for floor - mounted belt conveyors with anti - slip surfaces. In high - humidity environments, stainless steel conveyors prevent corrosion, while powder - coated carbon steel works in dry settings. Prioritize modular designs to facilitate future expansion.
How To Ensure Regulatory Compliance with Automated Powder Coating Lines?
To ensure regulatory compliance with Automated Powder Coating Lines, install explosion - proof lighting and motors in the spray booth (rated for Zone 2 hazardous areas). Equip the curing oven with overtemperature protection that shuts off heating elements if temperatures exceed set limits by 15°C. Maintain ventilation systems to achieve 6 - 12 air exchanges per minute, keeping powder concentrations below 50 g/m³. Regularly test grounding systems (resistance <1 ohm) and train operators on OSHA - approved lockout/tagout procedures.
