How To Select And Operate An Aluminum Profile Powder Coating Line
The Aluminum Profile Powder Coating Line market serves strong demand in construction, furniture, and automotive sectors. These lines coat aluminum profiles for durability and aesthetics. Prices range from (55,000 for basic setups to )700,000+ for large, automated systems, based on production capacity, automation, and custom features.
Aluminum Profile Powder Coating Line: Coating Projects Introduction
Aluminum Profile Powder Coating Line handles diverse coating projects. In construction, it coats window frames, curtain walls, and door profiles, resisting weathering and corrosion. Furniture makers use it for chair legs, table frames, and cabinet handles, adding scratch resistance and style. Automotive industries apply it to aluminum trims and brackets, enhancing both look and longevity.
Aluminum Profile Powder Coating Line: Surface Treatment Technology
Aluminum Profile Powder Coating Line uses precise surface treatment steps. First, profiles undergo degreasing with alkaline solutions to remove oils and dirt. Then, chemical conversion coating (like chromating) forms a thin layer to boost powder adhesion. Next, electrostatic spray guns charge powder particles, which stick to grounded profiles for even coverage. Finally, coated profiles cure in ovens at 180–220°C, fusing powder into a hard, smooth finish.
Aluminum Profile Powder Coating Line: What Is It?
An
Aluminum Profile Powder Coating Line is a specialized automated system for powder-coating aluminum profiles. It integrates pre-treatment units, spray booths, curing ovens, and conveyors. Designed for efficiency, it handles various profile sizes/shapes, with controls to adjust powder flow, spray patterns, and curing times. It streamlines coating from start to finish, ensuring consistent results in high volumes.
Aluminum Profile Powder Coating Line: Components Introduction
Pre-treatment Unit: This unit prepares profiles via sequential tanks. Degreasing tanks use hot alkaline solutions to clean surfaces. Rinsing tanks remove residues. Conversion coating tanks apply chemicals to improve powder bonding. Conveyors move profiles through each stage, ensuring thorough treatment.

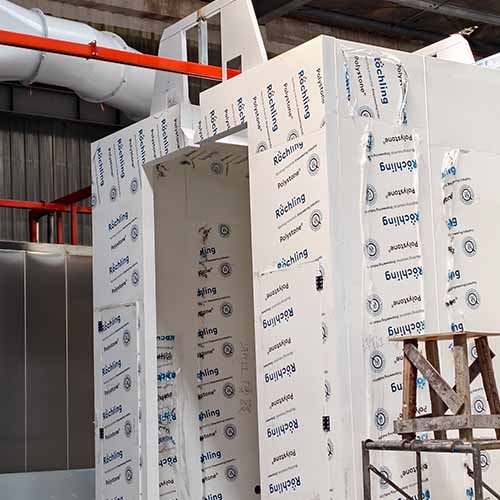

Spray Booth: The booth houses electrostatic spray guns, manual or robotic. Robotic guns follow programmed paths, adjusting flow and voltage for uniform coating. Ventilation systems extract overspray, keeping the area clean and safe. Booths are sized to fit long aluminum profiles without bending.
Curing Oven: Ovens use gas or electric heating, with insulation to retain heat. Conveyors move coated profiles through at controlled speeds, ensuring 10–20 minutes of curing. Temperature sensors maintain stability (±5°C), critical for proper powder fusion into a durable finish.
Aluminum Profile Powder Coating Line: Advantages
Aluminum Profile Powder Coating Line offers key benefits. It boosts production speed, handling 500+ profiles/hour in automated setups. The process ensures consistent coating thickness (50–150μm), reducing defects. Powder recycling systems cut waste by 80%, lowering costs. It’s eco-friendly, with no volatile organic compounds (VOCs) compared to liquid coatings.
FAQs About Aluminum Profile Powder Coating Line
How To Adjust Coating Thickness In An Aluminum Profile Powder Coating Line?
To adjust coating thickness in an Aluminum Profile Powder Coating Line, start with spray gun settings. Increase powder flow rate (100–300g/min) for thicker coats; decrease for thinner ones. Adjust electrostatic voltage: higher voltage (80–100kV) attracts more powder, thickening coats; lower voltage (40–60kV) reduces thickness. Slow conveyor speed (0.5–2m/min) lets more powder adhere; speed it up for thinner layers. Use a thickness gauge to test and fine-tune until reaching the target (e.g., 80μm for window frames).
How To Choose The Right Size For An Aluminum Profile Powder Coating Line?
Choosing size for an Aluminum Profile Powder Coating Line depends on profile length and production volume. Measure your longest profile (e.g., 6m for curtain walls) to ensure the line (booth, oven) fits without bending. For small batches (100 profiles/day), a compact line with manual spray works. High-volume needs (1000+/day) require large, automated lines with fast conveyors. Check floor space: allow room for conveyors, pre-treatment tanks, and maintenance access.
How To Maintain An Aluminum Profile Powder Coating Line?
Maintain an Aluminum Profile Powder Coating Line by daily checks. Clean spray guns with compressed air to prevent clogs. Empty overspray collectors and replace filters weekly. Inspect conveyor chains for wear, lubricating monthly. In pre-treatment units, check chemical levels and pH daily; replace solutions when contaminated. Curing ovens need monthly temperature calibration with a pyrometer. Annual professional inspections of electrical systems and robotic arms prevent breakdowns.
How To Ensure Safety When Operating An Aluminum Profile Powder Coating Line?
Safety in an Aluminum Profile Powder Coating Line starts with PPE: respirators, goggles, and gloves to avoid powder inhalation/contact. Ground all equipment to prevent static sparks. Keep the booth and oven areas clear of flammables. Install fire extinguishers and smoke detectors near powder storage. Train operators to stop the line via emergency buttons if jams or leaks occur. Ventilate the workspace to keep powder concentrations below explosive levels.
How To Troubleshoot Uneven Coating In An Aluminum Profile Powder Coating Line?
Uneven coating in an Aluminum Profile Powder Coating Line often stems from gun issues. Check for clogged nozzles; clean or replace them. Ensure robotic arms are calibrated—misalignment causes uneven spray. Verify conveyor speed is steady; fluctuations disrupt coverage. In pre-treatment, uneven cleaning (due to low chemical levels) leads to poor adhesion—test surface tension with a dyne pen. Adjust powder fluidization in hoppers; clumpy powder sprays unevenly. Cure oven hot spots (check with thermal cameras) can also cause finish inconsistencies—rebalance heating elements.
