Powder Coating Sprayer And Oven: A Comprehensive Guide for Your Coating Needs
The Powder Coating Sprayer And Oven market caters to a wide range of applications, from automotive parts to industrial equipment and household items. The cost of such systems can vary significantly based on factors like size, capacity, and additional features. Small, basic units might start at a few thousand dollars, while large, high - tech industrial systems can cost hundreds of thousands.
Powder Coating Sprayer And Oven systems are widely used in various coating projects. In the automotive industry, they are employed to coat car parts such as bumpers, wheels, and interior trims. The process provides a durable and attractive finish that can withstand harsh environmental conditions. In the furniture industry, these systems are used to coat metal furniture frames, ensuring they are resistant to rust and wear. For example, outdoor metal furniture is often powder - coated to prevent corrosion from rain and humidity. Industrial equipment like machinery parts, electrical enclosures, and handrails also benefit from powder coating, as it offers protection against abrasion and chemicals.
Powder Coating Sprayer And Oven systems utilize a unique surface treatment process. First, the surface to be coated is thoroughly cleaned to remove any dirt, grease, or rust. This can be done through methods like sandblasting or degreasing. Then, a dry powder, consisting of polymer resins and pigments, is applied using a spray gun. The powder is electrostatically charged, which helps it adhere evenly to the grounded surface. After application, the coated object is placed in the oven. The oven heats the powder to a specific temperature, typically between 150 - 200°C (302 - 392°F), causing the powder to melt and flow, forming a smooth, continuous film. As it cools, the powder cures, creating a hard, durable finish. This process is different from traditional liquid paint as it does not require solvents and results in a thicker, more resilient coating.
Powder Coating Sprayer And Oven is a combination of equipment used to apply and cure powder coatings. The sprayer is designed to evenly distribute the dry powder onto the surface of an object. It typically consists of a powder hopper, where the powder is stored, a feeding mechanism to deliver the powder to the gun, and the gun itself. The gun uses either electrostatic or air - pressure methods to atomize and propel the powder towards the workpiece. The oven, on the other hand, is used to heat the coated object to cure the powder. It has a controlled heating system, which can be electric, gas - fired, or use infrared technology. The oven's interior is designed to ensure uniform heating, so that the powder coating cures evenly across the entire surface of the object.
Powder Sprayer Gun: This is the key component for applying the powder. Electrostatic spray guns charge the powder particles, which then attract to the grounded object, ensuring better adhesion and a more even coat. Mechanical spray guns, on the other hand, use air pressure to spray the powder. They are suitable for applications where electrostatic charging may not be effective, such as non - conductive materials.
Powder Hopper: It stores the dry powder coating material. The hopper is designed to feed the powder at a consistent rate to the spray gun, ensuring a continuous and even application. Some hoppers have agitator mechanisms to prevent the powder from clumping.

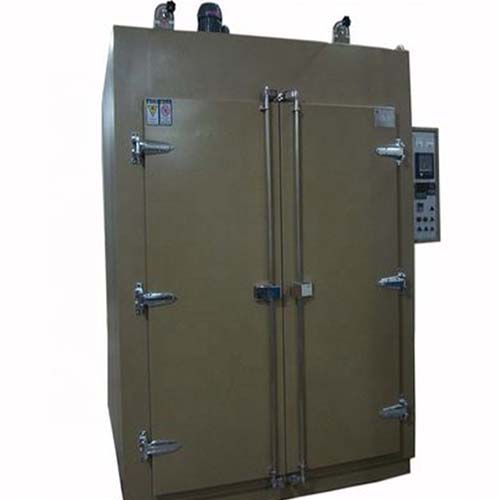

Oven: The oven provides the heat required for curing the powder coating. It has temperature control systems to maintain the optimal curing temperature. The oven's size and design vary depending on the size and volume of the objects to be coated. Industrial ovens are often large and can accommodate multiple items at once, while smaller ovens are suitable for small - scale production or hobbyist use.
Powder Coating Sprayer And Oven systems offer several advantages. Firstly, they provide a highly durable finish. The cured powder coating is resistant to chipping, scratching, and fading, making it ideal for products that will be exposed to harsh conditions. Secondly, it is an environmentally friendly option. Since it is a dry process, it does not release volatile organic compounds (VOCs) into the air, reducing air pollution. Thirdly, powder coating is cost - effective in the long run. Although the initial investment in the equipment may be significant, the durability of the coating means that products need less frequent re - coating. Additionally, any excess powder can be recycled and reused, reducing material waste. Finally, powder coatings come in a wide range of colors and finishes, allowing for greater customization.
How to Choose the Right Powder Coating Sprayer And Oven for Small - Scale Production?
When choosing for small - scale production, consider the size of the items you'll be coating. If you're working with small parts, a compact oven and a handheld spray gun might be sufficient. Look for equipment with adjustable settings for temperature (in the oven) and powder flow (in the sprayer) to ensure you can achieve the best results for different types of powder coatings. Also, check the ease of maintenance and cleaning, as this will save you time and effort in the long run. For example, an oven with smooth interior surfaces and easily removable parts for cleaning is a great option.
How to Ensure Proper Adhesion with Powder Coating Sprayer And Oven?
Proper surface preparation is crucial for good adhesion. Thoroughly clean the surface to be coated to remove any contaminants. Use methods like sandblasting for metal surfaces to create a rough texture that helps the powder adhere better. When using the sprayer, ensure the correct distance between the gun and the object. A distance that is too close can cause the powder to build up unevenly, while a distance that is too far may result in poor adhesion. In the oven, make sure to follow the recommended curing temperature and time for the specific powder coating you are using. Incorrect curing can lead to weak adhesion.
How to Maintain Powder Coating Sprayer And Oven Equipment?
For the sprayer, regularly clean the powder hopper and the gun to prevent powder buildup. Check the hoses for any blockages or leaks. Lubricate moving parts as per the manufacturer's instructions. For the oven, clean the interior regularly to remove any powder residue that may have accumulated during the curing process. Inspect the heating elements periodically to ensure they are working properly. Check the temperature control system for accuracy. If there are any signs of wear or malfunction, replace the parts immediately to avoid affecting the quality of the powder coating process.
How to Troubleshoot Common Issues with Powder Coating Sprayer And Oven?
If the powder coating is uneven, it could be due to a problem with the spray gun, such as a clogged nozzle or incorrect powder flow settings. Clean the nozzle and adjust the flow accordingly. If the coating is not curing properly in the oven, check the temperature settings. It could be that the oven is not reaching the correct temperature, which may be due to a malfunctioning heating element or thermostat. If there is excessive powder waste, check for leaks in the spray system or improper gun technique. Adjust the gun angle and distance to minimize waste.
How to Expand Powder Coating Sprayer And Oven Operations?
To expand your operations, you can invest in larger - capacity equipment. Upgrade to a bigger oven that can accommodate more items at once or a more powerful sprayer with better precision. Consider adding more color options to your powder coating range to attract more customers. You can also train your staff on advanced powder coating techniques to offer more specialized services. Additionally, marketing your expanded capabilities to potential clients in industries such as aerospace, where high - quality powder coating is in demand, can help grow your business.
